Hello everyone, and welcome to Abhishek
products by S.K.Graphics I am Abhishek Jain

and today we are going to see the two
types of visiting card lamination machines

this is the visiting card lamination machine

this looks like this and this is also called
roll to roll lamination machine

This runs in normal electricity plug

for this no special type of
the electric power outlet is needed

the machine looks like this and when you set the
roll inside the lamination machine

it looks like this

In this machine, you can do the two-side lamination
in a single pass

the normal lamination machine looks like this

In these machines, pouch lamination is done
not the visiting card lamination

if you do not know what
a visiting card lamination is,

it looks like this

visiting card lamination is skinny or
very thin

this is thinner than the paper

a coating is applied on the visiting card
and it is called visiting card lamination

it is also called thermal lamination

it is also called glossy lamination

some people say it is hot lamination
it is wrong

it is called thermal lamination

or it is called visiting card lamination,

it is very thin, it is about 23 or
27 microns

it is transparent and thin

you can see the content behind it also

it has a roll at the top side, and
a roll at the bottom.

the paper passes through the centre

the lamination starts from the top and bottom side
pass through the centre, then makes the coating

like this, this product works

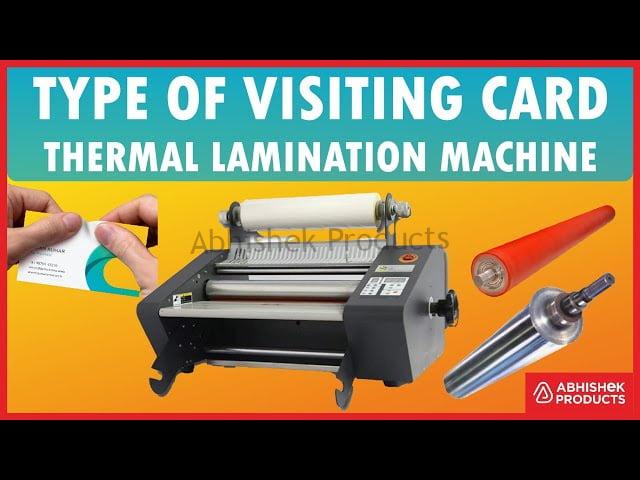

we have two types of this machine

the first type we call rubber by
rubber roller

the second type of machine we have looks
like this

it is called steel by rubber roller

on the top side has a steel roller and a
the rubber roller is placed on the bottom side

this small difference makes a difference in
the quality of the product as night and day

So to understand what is the fundamental
difference between both the machines

if you do visiting card works,

then first you have to print the visiting
card on a laser printer or a digital printer

you have to print visiting card in300gsm
or non-tearable media or PVC sheet

whose size is 13x19, 12x18 or A3

this machine of ours

inside this 13x19 lamination goes easily

This way it will feed from the front

there are two rubber rollers on the top and bottom

rubber in the sense it's a silicone roller

this roller is heated and with that heat

this lamination film is pasted on the
visiting card when heated

then the visiting card is cut with manual
A3 size paper cutter

the quality of the visiting card while laminating
is determined by

the quality of the rubber

The weight of this machine is about
25 to 30 kg plus

due to its weight being good,

the visiting card is well laminated
with good pressure

but pressure and temperature both are very
important for quality

pressure problem is solved by the rubber

the quality of silicon is good, but
steel is better than silicon

why? because in silicon after one or two
years

slowly small scratches will appear on the silicon

then after Four-Five Years of this
Silicone Roller slowly develops cracks

at that time spare parts of the machine
must be changed

otherwise, scratches and cracks will be formed
more on the visiting cards

when there are some scratches on the roller

if you have scratches on the roller then that
scratches will also affect the visiting card

this will reduce the quality slowly and
the customer will not be happy with that

for this purpose, we required a steel roller

because the scratches do not
come easily over the steel rollers,

scratches will also come on the steel roller

but we have given a chromo coating
over the steel roller

chromo coating means the shiny part over
the steel roller

this reflective surface is called chromo coating

in the chromo coating, the scratches will
not come easily

if it comes, it comes slowly in small
sizes

scratches come quickly in silicon rubber
it decreases the life of your machine

in the silicon rubber, some cracks are formed
after some time and pit also

because this is made of steel scratches will
not come on this because it's steel

so that the machine quality and product
quality is maintained

first Benefits Quality

the second benefit is this steel roller is made
of chrome coating

its temperature rises quickly
it's heated quickly

it consumes less of your electricity

so that your production is also fast

first quality, second benefit production

the third benefit is self-life

You have this laser printer ok

you have printed it above with the
laser printer

many times the lamination roll ends
at the time of feeding

or there is a problem in the middle and
it is due to the toner of the laser machine

which sticks over the roller

because of that spots form on the roller

spots will appear slowly in the
visiting card also

now who will buy the spot-affected lamination

what you have to do is

buy the cleaning spirit

rub with the cotton cloth over the rubber
roller

so that stain over the rubber roller
will be removed

now you have removed the stain

but when you rub the roller

when you rub with soft material then
you are putting a scratch on it

then its life gradually decreases because

there must be scratches or spots

scratches are better than spots

you have to choose

this is a common problem, many of them
faces

it's the common problem when you
buy machines from us or any others

this is a common problem you have to
face. which I am telling you in advance

this is the problem, it reduces
the self-life of your product

But the same if you take a
steel roller with a chrome coating

then you can also take a
look at what happens in it

slowly the spots appear

because there is chrome coating above it
the spots forming are less

The second thing, if you clean the roller with
cleaning sprit

when you clean the rubber with cloths

then very few scratches come on it
comparing rubber roller

you are getting quality and production speed
in this machine with this product

and also the self-life

All these benefits are in the steel
roller

and on rubber roller both the
the machine is very good

both the machine is heavy duty

the difference is that one has
rubber roller and the other has a steel roller

if your budget allows then I would say always
take steel roller

because both of the machines are
almost same

the difference is the metal roller

the cost difference between the
two is about Rs.5000

in the silicon roller and steel roller

so it is better to spend Rs.5000 on it

when the machine is Rs.30,00 or Rs.40,000

what is in Rs.4000 or Rs.5000 in it, because
you are doubling the life of the machine

the cost is also less, in terms of
temperature electricity

this is the small education video from me
to all of you

this type of machine is good for
visiting card lamination

and the machines I showed you

visiting card lamination machine

this can also laminate gold foil rolls

we have different colours of gold
foil rolls

using this gold foil you can print
golden prints

silver print, pink print and also

over the transparent paper

up to 13x19 size
